Grade 2 Hybrid Control Panels – Blank Endstations

CP-10

Wired/Wireless 10 Zone Control Panel

Summary:

Grade 2
10 Zones
Plug-on Wireless Expander
High Density ASA
Wide Range of Compatible Keypads
Hybrid Option
iOS & Android Apps

Request More Information

CP-20

Wired/Wireless 20 Zone Control Panel

Summary:

Grade 2
20 Zones
Plug-on Wireless Expander
High Density ASA
Ethernet / Wi-Fi / GSM Modules
Wide Range of Compatible Keypads
Hybrid Option
iOS & Android Apps

Request More Information

CP-60

Wired/Wireless 60 Zone Control Panel

Summary:

Grade 2
60 Zones
Wired and Wireless
100 Users
6 Areas
IP / Wi-Fi / GSM / PSTN
Single / Dual / Triple Path CM2 Coms Modules
Communication module support for CSL/ WebWay/Emizon & Redcare
Up to 6 Keypads
iOS & Android Apps

Request More Information

Features

CP-60 Metal Housing Option

“Stronger, more robust metal housing option that supports a 17Ah Battery.”

End User WiFi Setup

“When a customer changed routers, it was great for them to be able to update the SSID and password themselves.”

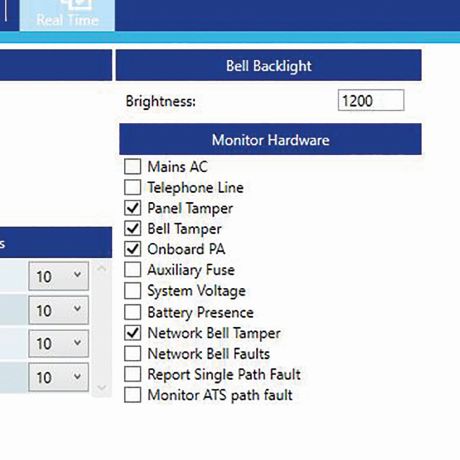

Tampers

“Configurable tampers come in really handy, especially for the bells & panels.”

Compare Control Panels - Spec Sheet

Click to expand

	W-CP-40K	W-CP-40T	W-CP-40E	CP-10	CP-20	CP-60	CK-10	CK-20	CK-60	CT-10	CT-20	CT-60	CP-30	CP-50	CP-100	CP-200
Connectivity	Wireless	Wireless	Wireless	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid	Wired/ Hybrid
Optional Wireless Access Point	NO	NO	NO	YES	YES	YES	YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
Integrated Wireless Expander	YES	YES	YES	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Onboard Zones	up to 10	up to 10	up to 10	10	10	10	10	10	10	10	10	10	10	10	10	10
Maximum Zones	40	40	40	10	20	60	10	20	60	10	20	60	30	50	100	200
Panel Outputs	up to 5	up to 5	up to 5	3	5	5	2	4	5	2	4	5	10	20	20	20
Maximum Outputs	44	44	44	18	30	73	18	27	73	18	27	73	45	95	140	270
Users	40	40	40	10	20	100	10	20	100	10	20	100	30	50	100	200
Keypads	3	3	4	5	5	6	5	5	6	5	5	6	5	10	10	20
True Areas	4	4	4	1	2	6	1	2	6	1	2	6	3	5	10	20
Part Set Modes	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area	3 Per Area
Expanders	3	3	3	NO	1	5	NO	1	5		1	5	2	4	9	19
Dedicated SAB Outputs	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Network External Sounders	2	2	2	1	2	2	1	2	2	2	2	2	3	4	4	8
PSTN On-Board Option	NO	NO	NO	YES	YES	YES	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
RJ45 Connection for Network In	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES	YES
Event Logging	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250	1250
Network Block	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	2*
Orisec Comms Modules	CM2 Series	CM2 Series	CM2 Series	NO	CM2 Series	CM2 Series	NO	CM2 Series	CM2 Series	CM2 Series	CM2 Series	CM2 Series	CM1 Series via ZX-5C	CM1 Series via ZX-5C	CM1 Series via ZX-5C	CM1 Series via ZX-5C
3rd Party Communication Ports	2	2	2	NO	2	2	NO	2	2	2	2	2	2	3	3	3
CSL Connected	YES	YES	YES	NO	YES	YES	NO	YES	YES	YES	YES	YES	YES	YES	YES	YES
Supports Camera Streaming via App	YES	YES	YES	NO	YES	YES	NO	YES	YES	YES	YES	YES	YES	YES	YES	YES
Volt Free Relay	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	1	1	1
16 Ohm Speaker Support	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Software Programmable Fuses	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES
Battery Support	2.4NiMH**	2.4NiMH**	2.4NiMH**	7Ah	7Ah	7Ah	2.3Ah	2.3Ah	2.3Ah	2.3Ah	2.3Ah	2.3Ah	17Ah	17Ah	17Ah	17Ah
Power Supply	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	2.75A	2.75A	2.75A	2.75A
Integrated Installation Manual	YES	YES	YES	NO	NO		YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
128 Character Display	YES	NO	NO	NO	NO		YES	YES	YES	NO	NO	NO	NO	NO	NO	NO
Programmable Volume Levels	YES	YES	YES	NO	NO		YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
QWERTY Keyboard	NO	YES	NO	NO	NO		NO	NO	NO	YES	YES	YES	NO	NO	NO	NO
Company Logo on Screen	NO	YES	NO	NO	NO		NO	NO	NO	YES	YES	YES	NO	NO	NO	NO
User Selectable Colours	NO	YES	NO	NO	NO		NO	NO	NO	YES	YES	YES	NO	NO	NO	NO
Keypad Randomiser	NO	YES	NO	NO	NO		NO	NO	NO	YES	YES	YES	NO	NO	NO	NO
Light Sensor	YES	YES	NO	NO	NO		YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
Self-Adjusting Backlight	YES	YES	NO	NO	NO		YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
Temperature Sensor	YES	YES	YES	NO	NO		YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
On-Board Loud Speaker	YES	YES	YES	NO	NO		YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
‘Copy & Paste’ Function	YES	YES	NO	NO	NO		YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
Selectable Language Per User	YES	YES	YES	NO	NO		YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
Tamper Detection Options	Lid, Wall & Screw	Lid, Wall & Screw	Lid, Wall & Screw	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall
Voice Annunciation	YES	YES	YES	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES	YES
Housing	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA	High Density ASA / 1.2mm Steel	High Density ASA / 1.2mm Steel	High Density ASA / 1.2mm Steel	High Density ASA / 1.2mm Steel
EN 50131-3	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 3	Grade 3	Grade 3	Grade 3
Dimensions H x W x D (mm)	168 x 234 x 43mm	168 x 234 x 40mm	168 x 234 x 40mm	300 x 261 x 85mm	300 x 261 x 85mm	300 x 261 x 85mm	275 x 195 x 55mm / 281 x 238 x 87mm (Plus)	275 x 195 x 55mm / 281 x 238 x 87mm (Plus)	275 x 195 x 55mm / 281 x 238 x 87mm (Plus)	275 x 195 x 55mm / 281 x 238 x 87mm (Plus)	275 x 195 x 55mm / 281 x 238 x 87mm (Plus)	275 x 195 x 55mm / 281 x 238 x 87mm (Plus)	338 x 287 x 88mm (Polymer) / 305 x 382 x 85mm (Metal Small) / 390 x 390 x 95mm (Metal Large)	338 x 287 x 88mm (Polymer) / 305 x 382 x 85mm (Metal Small) / 390 x 390 x 95mm (Metal Large)	390 x 390 x 95mm (Metal Large)	390 x 390 x 95mm (Metal Large)
