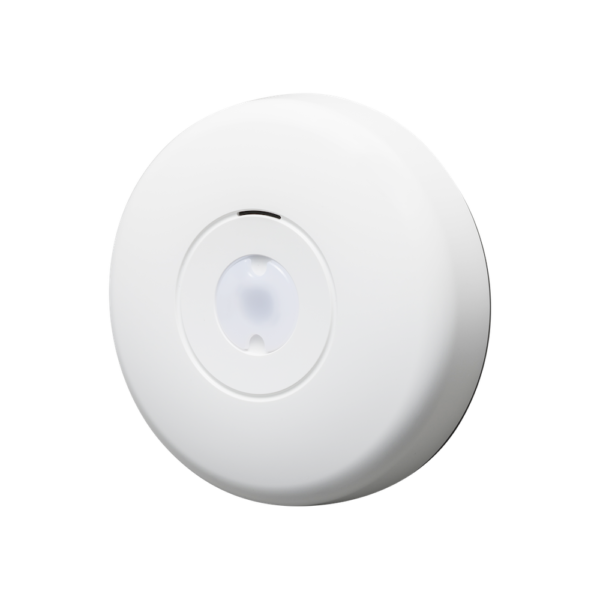

TAK-VS1000

Takex – Vape Sensor 12VDC

Designed to combat the growing problem of teenage vaping on school grounds and other similar environments.
Can operate either stand-alone or wired/wirelessly to Orisec Control Panels.

Summary:

• Detects vaping and smoking in restrooms and similar areas
• Fully Compatible with all Orisec Control Panels
• Wireless Connectivity via Orisec W-SD-MC
• Adjustable detection sensitivity (Standard/Low)
• Selectable alarm contact output (N.C./N.O.)
• Enable/disable LED indicator
• Dedicated terminal for interconnecting multiple units
• Quick-to-install screwless terminals
• Tamper-resistant cover locking mechanism
• Suitable for ceiling or wall mounting

TAK-MMW3S

Takex – mmW Radar Sensor – SPOT 0.2m to 3.5m

MMW-3 is a state-of-the-art mmWave radar sensor engineered for precise presence detection, sensing even subtle human movements like breathing.

This ensures no presence goes unnoticed, providing robust and reliable security

MMW-3S
Provides targeted, narrow-range detection perfect for confined areas like doorways or small rooms.

Summary:

• mmWave presence sensing technology
• 0.2 – 3.5m detection distance
• Environmental & false alarm immunity
• NC/NO selectable output
• Touchless switch mode
• Simple & Discreet design
• Available in white and black finishes

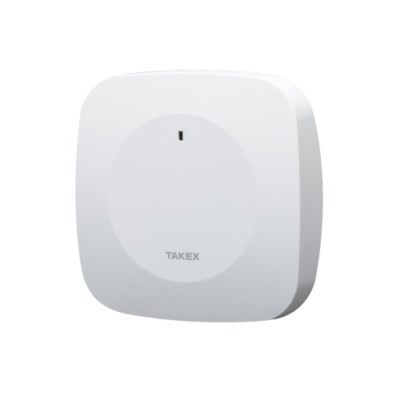

TAK-MMW3W

Takex – mmW Radar Sensor – WIDE 0.2m to 3.5m

MMW-3 is a state-of-the-art mmWave radar sensor engineered for precise presence detection, sensing even subtle human movements like breathing.

This ensures no presence goes unnoticed, providing robust and reliable security

MMW-3W
Covers wider zones, making it ideal for open spaces such as offices and corridors.

Summary:

• mmWave presence sensing technology
• 0.2 – 3.5m detection distance
• Environmental & false alarm immunity
• NC/NO selectable output
• Touchless switch mode
• Simple & Discreet design
• Available in white and black finishes

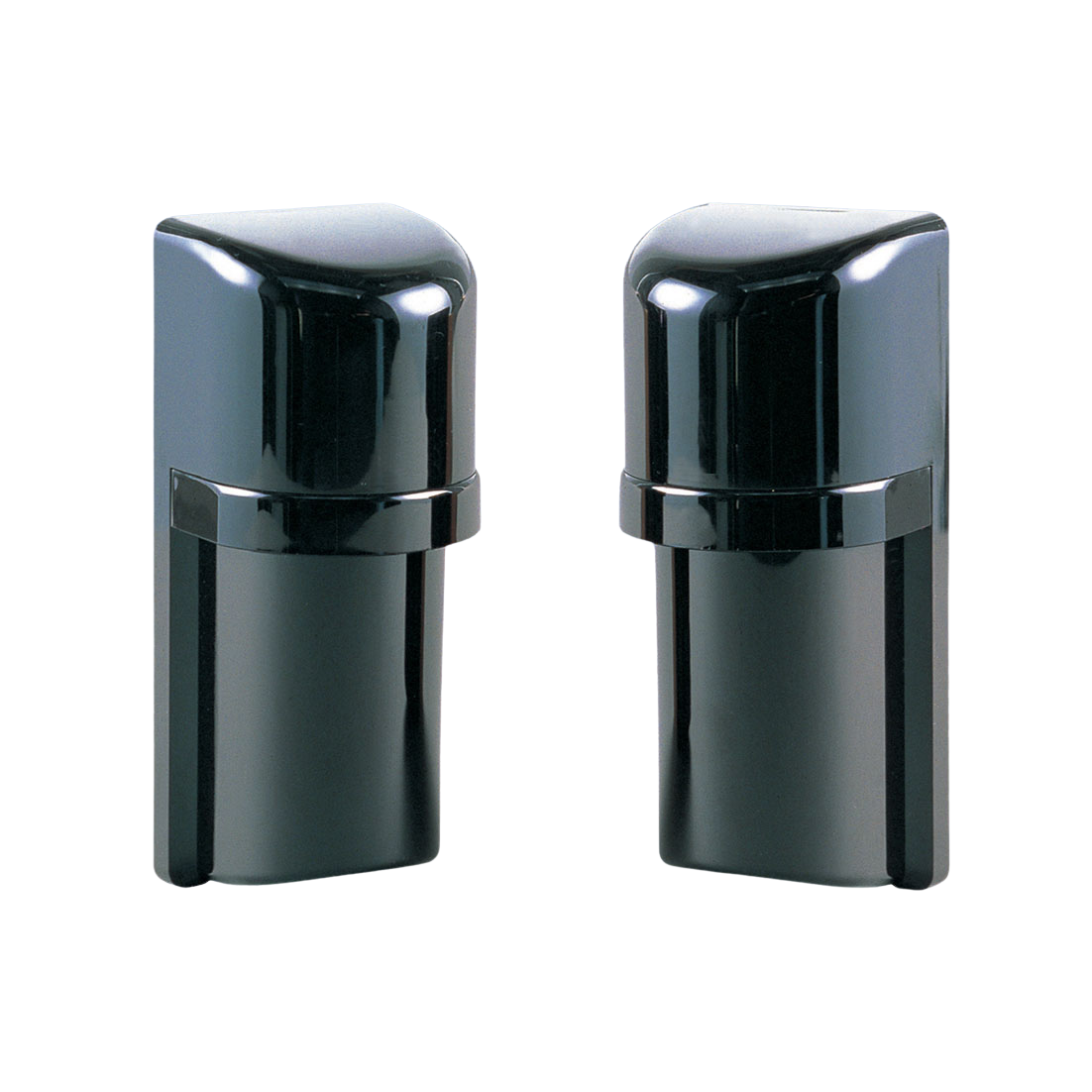

TAK-PB60TK

Takex – Twin Beam Up to 60m Outdoor / 120m Indoor, Single Channel

Summary:

• Up to 60m Outdoor / 120m Indoor, Single Channel
• 2 x Synchronised high power beams
• Double modulation for unsurpassed light immunity
• Auto-gain control (AGC)
• 50,000 lux sunlight immunity
• IP55 housing

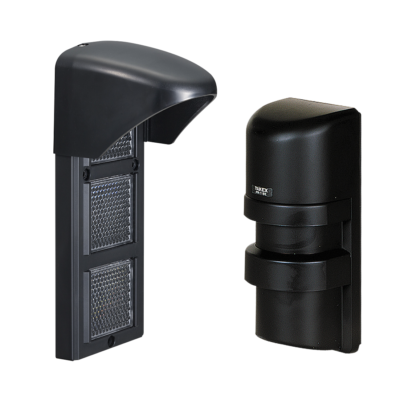

TAK-PR11BE

Takex – Up to 11m Outdoor / 15m Indoor

The PR-11BE Reflector Beam is suitable for both indoor and outdoor use, for applications where a beam-break is desirable but running cable to both ends is impractical.

A convenient way to monitor entrances, gateways, and driveways – for general monitoring and lighting control.

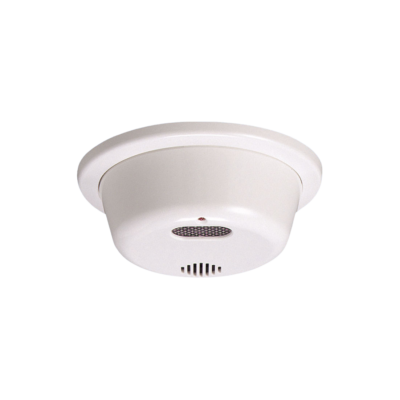

TAK-FS1000E

Takex – Flame Sensor 10m / 7cm Flame, Battery or DC Operation

FS-1000E is designed to hook into your existing intruder/CCTV system, bringing accurate, immediate attention to the use of cigarette lighters, matches, and other open-flames.

Summary:

• High sensitivity ultraviolet flame sensor
• Detachable base unit with snap-in-out sensor design
• Built-in sounder
• NO/NC relay output
• Adjustable response time
• Battery (2x AA type-3 alkaline) or DC operation

TAK-AV100

Takex – Horn Speaker 100dB Requires N/O Trigger for Activation

A horn-type speaker with built-in microphone which requires a N.O. input to trigger the playback of your recorded message.

Summary:

• Requires external trigger for activation (N.O. input)
• Record a message (up to 12 secs.) using built-in microphone
• Omni-directional bracket for wall or ceiling mount
• Memory back-up for 20 days without power
• Horn speaker type 100dB/1m (max)

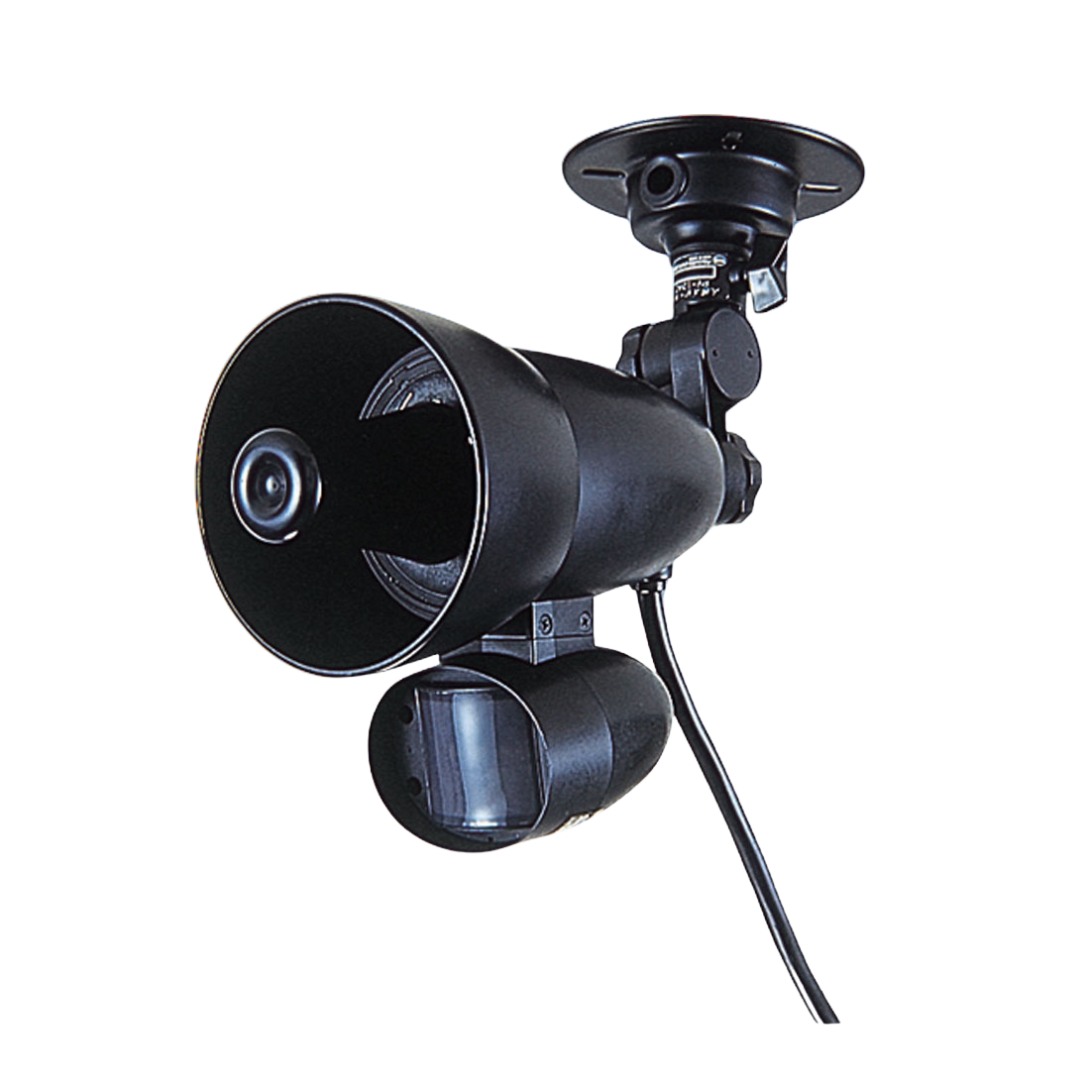

TAK-PV-12E

Takex – Horn Speaker 100dB with Built-in 12m x 75 degree PIR

A sensor speaker designed to play your recorded message when its integrated 12m / 40ft PIR detects movement of people or vehicles.

Summary:

• Integrated PIR triggers activation of message
• Record a message (up to 12 secs.) using built-in microphone
• Alarm output
• Omni-directional bracket for wall or ceiling mount
• Memory back-up for 20 days without power
• Horn speaker type 100dB/1m (max)
