Expanders
W-XP2
Wireless Expander with Dual Diversity Antennas for the very best coverage. In a discrete stylish housing, this is recommended for the vast majority of installations and is now included as standard in the wireless kits.
Summary:
- 2x Antennae for Dual Diversity
- Enhanced Signal Coverage
- Up to 100 Wireless Zones*
- Up to 100 Keyfobs*
- 2 Way Wireless Communications
- Digital Thermometer
- Frequency Hopping Technology
- Grade 2
- Compact Housing 110mm x 110mm
*Panel Dependent
W-AP
Wireless Access Point
Can be used in poly control panels where wireless range is relatively short distance and space is limited.
W-AP can also be plugged onto other Orisec products to enable wireless connectivity.
Summary:
- 2 Way Wireless Communications
- Frequency Hopping Technology
- Supports up to 100 Wireless Devices
- Plug-on Compatability:
CP-10
CP-20
CP-10-LCD
CP-10-LCD
CP-10-T
CP-20-LCD
CP-20-T
XD1, XD2, XD4
The W-AP does not use an address slot on the network. W-AP is not recommended for large applications or those with wireless bells, wireless keypads or repeaters.
W-XP
Wireless Expander
All the features of a W-XP2 with addition of an on-board relay, on-board piezo, RJ45 network in and out, 7 segment display, address noise notification, speaker terminals and tamper return input for external sounders.
Summary:
- 2 Way Wireless Communications
- 2x Antenna for Dual Diversity
- Supports up to 100 Wireless Devices*
- 2 Outputs
- 3 Amp Relay
- 1 Transistorized 100mA Output
- On-Board Piezo
- 16 Ohm Loudspeaker Driver/Output
- Programmable Volume Levels
- Screw Tamper Protection
- RJ45 Support for Network In / Out
- Stylish Housing
- 7 Segment Display
- Address Noise Notification
- Light Sensor
- Tamper Return Terminal for External Sounders
- Temperature Sensor
Frequency Hopping Technology
*Panel Dependent
Patent No. GB2554744 & GB2554700
Expander & Repeaters
Repeater
W-XP-R
Wireless Expander & Repeater
A dual-purpose wireless expander that can also be used a standalone repeater*.
Summary:
- 2 Way Wireless Communications
- Supports up to 100 Wireless Devices**
- Network Connection
- Small and Cost Effective
- Stylish Housing
- Temperature Sensor
Frequency Hopping Technology
*A 12V supply and available Wireless Zone slot is required
**Panel Dependent
W-XPR-EXT
Wireless External Expander, Repeater & Bridge
This IP65 weatherproof wireless expander is the perfect solution for external applications, can be used as a full wireless expander or repeater*
Summary:
- IP-65
- 2 Way Wireless Communications
- Supports up to 100 Wireless Devices**
- Network Connection
- Small and Cost Effective
- Stylish Housing
- Temperature Sensor
Frequency Hopping Technology
*A 12V supply and available Wireless Zone slot is required
**Panel Dependent
W-RP-PSU
Powered EN Wireless Repeater
Summary:
- 2 Way Wireless Communications
- Supports up to 100 Wireless Devices*
- Stylish Housing
- Temperature Sensor
Frequency Hopping Technology
*Panel Dependent
Wired Expanders
ZX-10
Zone & Output Expander
Summary:
- 10 Zones
- 10 Outputs (Switch to 0V @ 100mA)
- On-board Piezo
- 16 Ohm Loudspeaker Driver/Output
- Programmable Volume Levels
- Screw Tamper Protection
- RJ45 Support for Network In/Out
- Stylish Housing
- 7 Segment Display
- Address Noise Notification
- Temperature Sensor
Patent No. GB2554744 & GB2554700
ZX-10-PLUS
Zone & Output Expander
Summary:
- Additional Space for Wiring
- 10 Zones
- 10 Outputs (Switch to 0V @ 100mA)
- On-board Piezo
- 16 Ohm Loudspeaker Driver/Output
- Programmable Volume Levels
- Screw Tamper Protection
- RJ45 Support for Network In/Out
- 7 Segment Display
- Address Noise Notification
- Temperature Sensor
- Cable Management
Patent No. GB2554744 & GB2554700
ZX-10-E
Zone Expander
Summary:
- 10 Zones
- Stylish Housing
- Screw tamper
- Temperature sensor
Patent No. GB2554744 & GB2554700
ZX-10E-PLUS
Zone Expander
Summary:
- 10 Zones
- Additional Space for Wiring
- Temperature Sensor
- Cable Management
Patent No. GB2554744 & GB2554700
PZX-10
Powered Zone Expander
Summary:
- Intelligent 2.75 Amp PSU
- 10 Zones
- 10 Outputs (Switch to 0V @ 100mA)
- On-board Piezo
- 16 Ohm Loudspeaker Driver/Output
- Programmable Volume Levels
- Screw Tamper Protection
- RJ45 Support for Network In/Out
- Stylish Housing
- 7 Segment Display
- Address Noise Notification
- Temperature Sensor
Patent No. GB2554744 & GB2554700
ROX-5/10
5x / 10x Relay Output Expander
Summary:
- 5x / 10x 1A 24V NO/NC Relay Outputs
- 5x / 10 Wired Zone Inputs
- 2 Way Wireless Communications*
- Simple Enrolment*
- Frequency Hopping Technology*
- Stand-alone or with Orisec Panel Operation
- Weigand Interface for optional connection to Orisec PRX-EXT prox reader
- Learn up to 20 Weigand cards when using the PRX-EXT
- Can Act as a Wireless Repeater*
- Onboard Piezo
- 16 Ohm Speaker Connections
*When used with an Orisec W-AP
ZX-10-L
Local Zone Expander
Summary:
- Mount inside CP-20 & CP-60 Control Panels
- 10 Zones
Patent No. GB2554744 & GB2554700

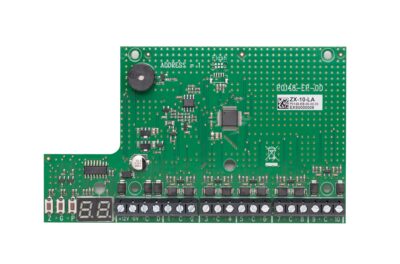

ZX-10-L-INERTIA
Local Zone Expander
Summary:
- Mount inside CP-20 & CP-60 Control Panels
- 10 zone inputs with fully programmable inertia analyser
- Onboard Piezo for local walk-test
- 7 Segment Display for local programming of inertia analyser
