XD2 Series

Wired & Wireless External Detectors

The XD2 Series is designed primarily for Intruder Alarm applications

XD2

External Twin PIR – Wide Angle 12m

Summary:

  • Selectable EOL Resistors for Alarm Panels
  • NO/NC Relay for CCTV & Lighting
  • Switched -ve Alarm & LUX Outputs
  • Adjustable Detection Range & Angle
  • Two Separate PIR Detectors
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • 1.8m to 2.0m Mounting Height

XD2-DT

External Twin PIR + Dual Technology – Wide Angle 12m

Summary:

  • Selectable EOL Resistors for Alarm Panels
  • NO/NC Relay for CCTV & Lighting
  • Switched -ve Alarm & LUX Outputs
  • Adjustable Detection Range & Angle
  • Dual Tech Microwave (24GHz) / PIR
  • Two Separate PIR Detectors
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • 1.8m to 2.0m Mounting Height

XD2-DT-AM

Anti-Masking External Twin PIR + Dual Technology – Wide Angle 12m

Summary:

  • Selectable EOL Resistors for Alarm Panels
  • NO/NC Relay for CCTV & Lighting
  • Switched -ve Alarm & LUX Outputs
  • Adjustable Detection Range & Angle
  • Anti-Masking Detection
  • Dual Tech Microwave (24GHz) / PIR
  • Two Separate PIR Detectors
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • 1.8m to 2.0m Mounting Height

W-XD2

Wireless External Twin PIR – Wide Angle 12m

Summary:

  • Adjustable Detection Range & Angle
  • Two Separate PIR Detectors
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • Wireless Range >150m Line of Sight
  • 2 Way Wireless Communications
  • 1.8m to 2.0m Mounting Height

W-XD2-DT

Wireless External Twin PIR + Dual Technology – Wide Angle 12m

Summary:

  • Adjustable Detection Range & Angle
  • Dual Tech Microwave (24GHz) / PIR
  • Two Separate PIR Detectors
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • Wireless Range >150m Line of Sight
  • 2 Way Wireless Communications
  • 1.8m to 2.0m Mounting Height

Features

IP65 Waterproof Housing

Offers exceptional resistance to extreme weather conditions.

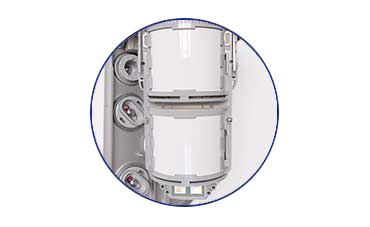

Independent PIR Sensors

Two Independent PIR Sensors with non-overlapping fields of view giving improved false alarm immunity. Adjustable detection range between 2m & 12m.

Coverage

90º coverage angle which may be adjusted over 180º by rotating the chassis.

Tamper

Adjustable wall tamper screw.

Mounting

Four rotating mounting feet.

Removable PCB Assembly

The detector assembly may be removed from the backplate for easy installation.

Walk Test Sounder & Wireless Walk Test Fob

Sounder activates during walk test to ensure reliable detection. The Walk Test Fob gives a visual and vibrating indication of detection during a walk test to aid testing in bright conditions.

Optional Wireless Access Point

Adds wireless connectivity to a wired device enabling full wireless integration and/or use of the Wireless Walk Test Fob.

Microwave Sensor

Optional Dual Technology versions available.

XD2 Coverage Pattern

Only detects when both PIRs are triggered. This gives improved false alarm immunity.

Compare XD2 Series External Detectors - Spec Sheet

Click to expand
