XD4 Series

Wired & Wireless External Detectors

The XD4 Series is designed primarily for Intruder Alarm applications

XD4

180° External 4 x PIR, 2 x 12m

Summary:

  • Four Separate PIR Detectors – 2 pairs
  • 180º Coverage – 90º from each pair
  • 4m to 24m Adjustable Detection Range
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • Hinged PCB for Easy Installation

XD4-DT

180° External 4 x PIR + Dual Technology, 2 x 12m

Summary:

  • Four Separate PIR Detectors – 2 pairs
  • Dual Tech Microwave (24GHz) / PIR
  • 180º Coverage – 90º from each pair
  • 4m to 24m Adjustable Detection Range
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • Hinged PCB for Easy Installation

W-XD4

180° External 4 x PIR, 2 x 12m

Summary:

  • Four Separate PIR Detectors – 2 pairs
  • 180º Coverage – 90º from each pair
  • 4m to 24m Adjustable Detection Range
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • Hinged PCB for Easy Installation
  • Wireless Range >150m Line of Sight
  • 2 Way Wireless Communications

W-XD4-DT

180° External 4 x PIR + Dual Technology, 2 x 12m

Summary:

  • Four Separate PIR Detectors – 2 pairs
  • Dual Tech Microwave (24GHz) / PIR
  • 180º Coverage – 90º from each pair
  • 4m to 24m Adjustable Detection Range
  • Built-In Walk Test Sounder
  • Optional Wireless Walk Test Fob
  • IP65 Waterproof Sealed Housing
  • Animal Immunity
  • Day/Night Sensor
  • Hinged PCB for Easy Installation
  • Wireless Range >150m Line of Sight
  • 2 Way Wireless Communications

Features

IP65 Waterproof Housing

Offers exceptional resistance to extreme weather conditions.

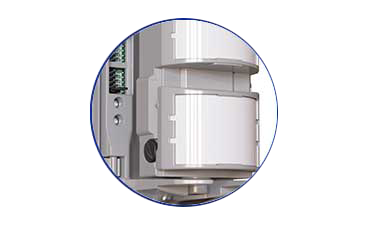

Independent PIR Sensors

2x Two Independent PIR Sensors with non-overlapping fields of view giving improved false alarm immunity. Adjustable detection range between 2m to 12m in both directionsm 24 metres max.

Coverage

180º coverage (90º from each pair)

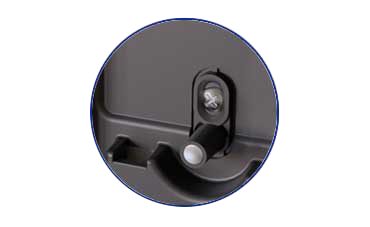

Optional Tamper

(Lid tamper comes as standard).

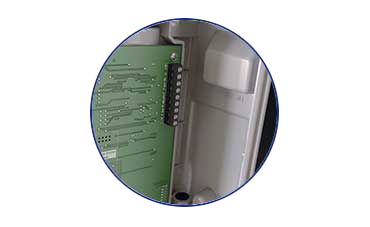

Hinged PCB

Provides easy wiring access. Easily detachable if required.

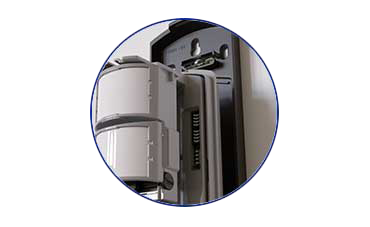

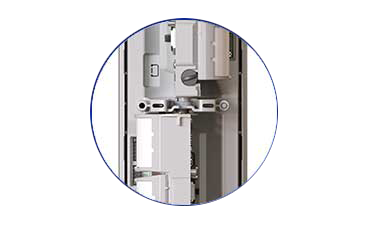

Removable PCB Assembly

The detector assembly may be removed from the backplate for easy installation.

Optional Wireless Access Point

Adds wireless connectivity to a wired device enabling full wireless integration and/or use of the Wireless Walk Test Fob.

Walk Test Sounder & Wireless Walk Test Fob

Sounder activates during walk test to ensure reliable detection. The Walk Test Fob gives a visual and vibrating indication of detection during a walk test to aid testing in bright conditions.

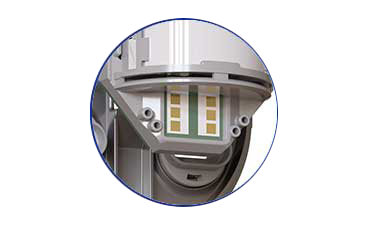

Microwave Sensor

Optional Dual Technology versions available.

XD4 Coverage Pattern

Only detects when both PIRs are triggered. This gives improved false alarm immunity.
